SC Connector 1*2 Passive Splitter Fiber Optic 1x2 FBT Coupler Long Life

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

SC Connector 1*2 Passive Splitter Fiber Optic 1x2 FBT Coupler Long Life

  • 1
  • 2
  • 3

Brand Name : Geehe, OEM,ODM

Model Number : PLC - 1✖2,1✖4,1×8，1✖16,1✖32

Certification : ISO9001:2015,14001,RoHS

Place of Origin : Wuhan,China

MOQ : 20 pcs,Free Samples

Price : Negotiated

Payment Terms : T/T, L/C,, D/P, D/A, Western Union

Supply Ability : 3,000 pcs per day

Delivery Time : With 5-7 working days, based on order quantity

Packaging Details : PE bags with thick outer cartons,follow customer's requirements.

Model Name : Fiber Optic 1x2 FBT Coupler

Fiber Type : G652D G657A

Structure : 1*2/1*4/1*8/1*16/1*32/1*64

Fiber Length : 1Meter, 1.5Meter as requested

Wavelength : 1260-1650nm

Grinding Method : PC.UPC.APC

Connector Type : SC , FC, LC, ST

Ratio : 10:90 20:80 30:70 40:60 50:50

Application : GEPON, FTTH, FTTX

Cable Diameter : 0.9/2.0/3.0mm

Contact Now

SC Connector 1*2 PLC Fiber Optic Splitter, Fiber Optic 1x2 FBT Coupler

Product description:

The Geehe PLC series of optical splitters can be used to split optical power transmitted in a fiber optic link. Versions with a large number of output ports are available while small size of the product is guaranteed by planar technology.

Multimode Fibrain splitters are available with split ratio ranging from 1x2 up to 1x16 and also as 2x2, 2x4 and 3x8 as well as asymmetric versions (such as 10/90, 20/80, 30/70, 40/60, 10/20/70, 15/15/70, 10/10/80, 40/40/20, 10/10/10/70). Fibrain MMF PLC splitters are compatible with the standard telecom multimode fibers, from OM1, through OM2 and OM3 to OM4.

Features:

  • 750-1350 nm wavelength range
  • -40/+85 °C operating range
  • Low excess losses
  • High attenuation uniformity
  • Compatible with all multimode fiber standards
  • Wide range of available power splits, including asymmetrical
  • 1 Additional insertion loss for PLC splitters with connectors: +0.4 dB
  • 2 Uniformity increased by 0.1 dB for PLC splitters with connectors

Application:

LAN networks
Data centers
Other optical telecommunication networks
Sensor and monitoring systems

Specification:

FIber Optical PLC Splitter
Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return Loss@ 1310/1551 nm (dB) ≤-55
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1

Package Dimensions

WxHxL(mm) PORT
60x7x4 1x4 1x8 2x4 2x8
60x12x4 1x16 2x16
80x12x6 1x32 2x32
100x40x6 1x64

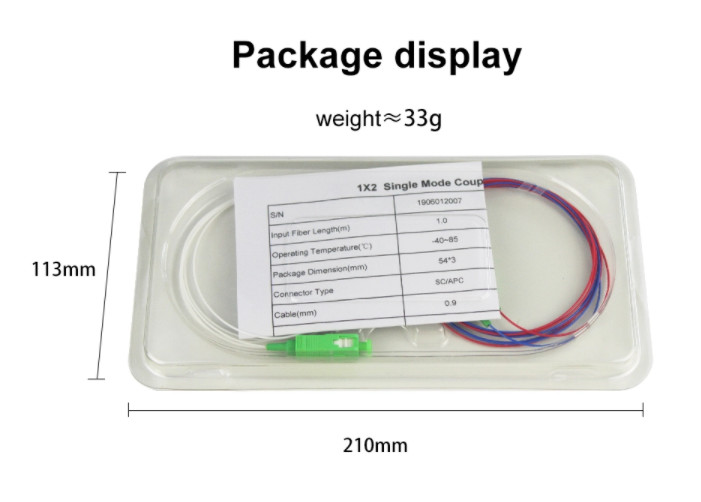

Product Packge

SC Connector 1*2 Passive Splitter Fiber Optic 1x2 FBT Coupler Long Life
